A Komatsu PC360 excavator fitted with a Klemm KR 909-3G rotary head drills through dense glacial till off Lincoln Street. That rig installs the boreholes for our anchor design work. Worcester sits on a mix of glacial outwash, lacustrine deposits, and weathered bedrock. Load transfer in these soils is not uniform. We design both active anchors that lock-off at 100% of the design load and passive anchors that engage only when the soil mass moves. Each anchor type serves a different function in an excavation support system. The tieback spacing, bond length, and grouting pressure all depend on the soil profile encountered at 42.2626, -71.8019. Before finalizing the anchor layout, we often recommend a CPT test to map the interface between fill and natural till.

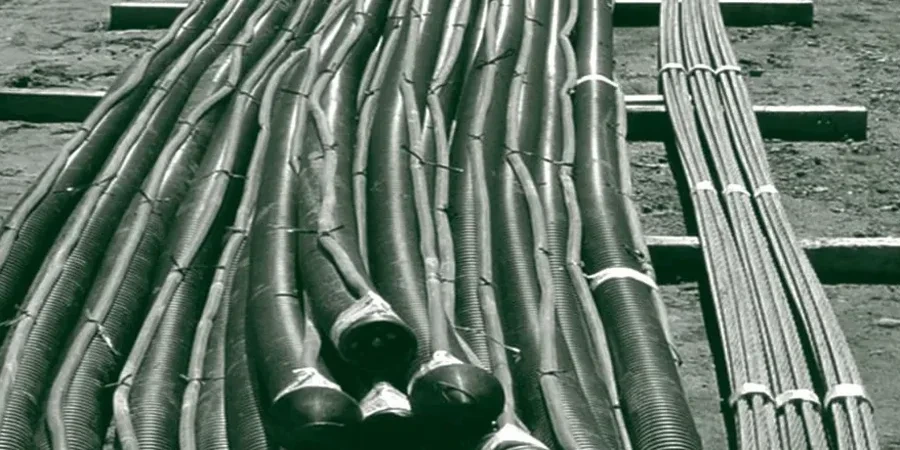

The difference between an active and passive anchor is simple: one applies load immediately, the other waits for deformation.
Quick answers
What is the difference between active and passive anchors?
Active anchors are tensioned to 100% of the design load during installation and locked off against the wall. They apply force to the soil immediately. Passive anchors are not tensioned. They develop resistance only when the soil mass deforms enough to load the tendon. We specify active anchors where movement cannot be tolerated, and passive anchors for temporary cuts or where deformation is acceptable.
How much does anchor design cost for a retaining wall in Worcester?
Anchor design for a typical retaining wall project in Worcester ranges from US$1.000 to US$3.990, depending on the number of anchors, the complexity of the soil profile, and whether pre-production testing is required. This covers the geotechnical analysis, bond length calculation, and stamped design drawings.
What soil conditions in Worcester affect anchor performance?
Worcester's glacial till provides good bond stress, typically 15 to 30 psi. The varved clays found in low-lying areas near the Blackstone River are problematic: they creep under sustained load and require pressure-grouted bond zones. Rock anchors in the western part of the city encounter schist and granite at shallow depths, which demands different drilling equipment and bond length calculations.
How is anchor load tested on site?
We perform proof tests on production anchors and performance tests on pre-production anchors. A hydraulic jack applies incremental loads while a dial gauge measures movement. The test follows PTI recommendations: load to 133% of design load in increments, hold each increment for a set time, and record creep. An anchor passes if the creep rate is below 2 mm per log cycle of time.
Do Worcester building codes require specific anchor testing?
Yes. The Massachusetts State Building Code adopts IBC 2021, which requires proof testing of all tieback anchors per Section 1810. The testing procedure must follow PTI DC35.1 or an approved alternative. A special inspector must be present during anchor installation and testing. The test reports become part of the permanent project record.
